Overview

Pocket Console is a DMX lighting console for iPhone. It is made for film, TV and video production: interview and location work. It patches fixtures, programs groups and looks, controls every parameter each fixture has, and sends DMX over Art-Net, sACN (E1.31) and Bluetooth.

Pocket Console is a console, not a remote. It holds the show data and it sends the DMX. No other software has to be running. Two ideas shape the app:

  • Dual control. Every action is available by touch and by command line. Both surfaces read and write the same live state.
  • Projects and locations. A project holds one production. A location holds one setup, with its own patch, fixtures, groups and looks.
Intensity / selected Info / objects Record / live Go / connected Fixture controls

The app uses these five colors throughout. Learn them once and the interface reads at a glance in the dark.

Getting started

The app opens on Projects.

  1. Create a project for the production.
  2. Create a location inside it for the setup.
  3. Tap the location card to open the console.

The console has four tabs: Fixtures · Looks · Patch · Settings. When you relaunch the app, it reopens the location you used last.

A short welcome tour runs the first time you launch the app. It points at the real controls on a demo location. On iPhone Duo it follows the screen, folded or unfolded. To play it again, go to Settings ▸ About ▸ Replay Tutorial.

Programming is free. Output is a subscription. Patching, groups, looks, the command line and saved shows are free, and they work offline. A subscription unlocks live DMX output: Pocket (1 universe), Plus (4 universes) or Pro (256 universes). Each is sold monthly, annually, or as a one-time lifetime purchase. Every subscription starts with a 7-day free trial.

Projects & locations

A project is a folder of locations. A location is one setup, and it owns its patch, fixtures, groups and looks.

  • A project row expands and collapses. Its ⋯ menu holds Rename, Clone and Delete. Delete asks for confirmation. A project has a name and a color bar, and nothing else.
  • A location is a card: a color dot, the name, and the fixture count. Its menu holds Edit, Clone and Delete. Tap the card to open the console.
  • + New Location adds a location to a project. + New Project adds a project. A new location can start from a template.
  • Sort orders the list by Last used, A–Z or Created.

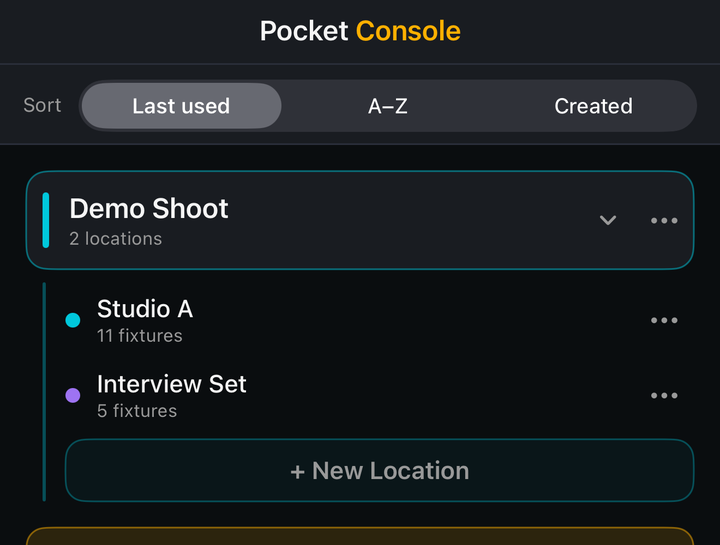

The Projects screen: a sort control, then the Demo Shoot project row expanded to show the Studio A and Interview Set locations and a New Location button.
Projects, with Demo Shoot expanded.
Tip New projects and locations take the default swatch color from Settings, so your color coding stays consistent.

The Fixtures screen

This is the main control screen. From the top down: a header, the group chips, the fixture grid, the level dock, an action row, and the command bar.

Header

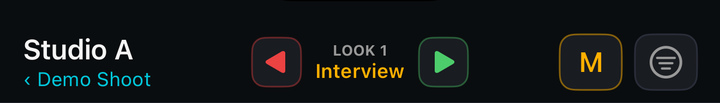

The Fixtures header: the location name Studio A over the project name, the look transport showing LOOK 1 Interview, and the M and filter buttons.
The live look sits between the transport arrows. It reads LOOK 0 · Default until you recall one.
  • Title and ‹ Project. Tap the subtitle to close the location.
  • Look transport (center). Red ◀, the live look, green ▶. Step through looks without leaving this screen.
  • M. Opens the Master panel: a master fader, a Blackout button and the Battery saver toggle. The fader moves from where it is, so a stray tap cannot jump every light to a new level. M turns red while blackout is on. Levels in the grid show the effect of master and blackout immediately.
  • Filter. Narrows the grid by Group, State (Active, Selected, Has B), Color or Universe. Filtering changes what you see. It does not change what is selected, and hidden fixtures keep their levels and keep putting out light. While a filter is on, the button shows how many fixtures are showing out of the total.

Fixture pills

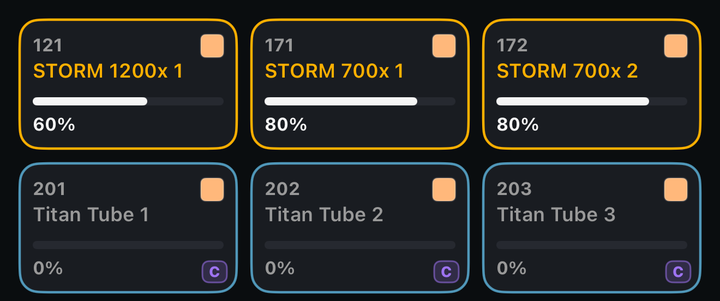

Six fixture pills. The top row of three is outlined amber and reads 60%, 80% and 80%. The second row is outlined cyan, reads 0%, and each carries a violet C badge.
Three selected fixtures (amber outline) above three pixel fixtures, each with a violet C badge.

Each pill shows the fixture number, the label, an intensity bar and percentage, and a corner color swatch (the fixture's color at full). The outline is the label color, and turns amber when the fixture is selected. Tap a pill to add or remove it from the selection. A pixel fixture carries a violet C badge; tap and hold it to open its cells. While battery saver is on, a saved fixture shows an orange battery by its swatch.

Swipe sideways across the pills to select a run of fixtures in one movement. The pill you start on and the pill under your finger are the two ends, and everything between them comes with it, so you do not have to touch each one. Drag back toward the start to shrink the run before you let go. A swipe adds to what is already selected, so you can sweep one block, sweep another, then tap single pills to trim. Only fixtures you can see are picked up: anything the filter is hiding stays out of it. The swipe has to start sideways, because a straight up or down drag scrolls the grid. Tap the empty space around or below the pills to clear the selection.

Manual value against a live look While a look is live, the pill percentage turns red when your manual value differs from the look, and white when it matches. The color swatch takes a red border when the color differs. Editing on top of a look keeps that look live until you Home, Release, or recall another look.

Group chips

Four group chips in a row: Key and Sun outlined red, Backlights outlined orange, Practicals outlined violet.
The chip rail, under the header. Each chip is outlined in its group's own color.

One chip per group, tinted in the group's own color. Tap a chip to switch that group on or off. Several groups can be on at once, and the selection is their union. Tap and hold a chip to delete the group. Create groups with Record → Group.

Level dock, action row and command bar

Three stacked strips: OUT, a ribbed jog wheel and FULL; then Record, Update, Fix Ctrls and A/B; then the command bar reading Fix 121 + 171 + 172 with a red C button.

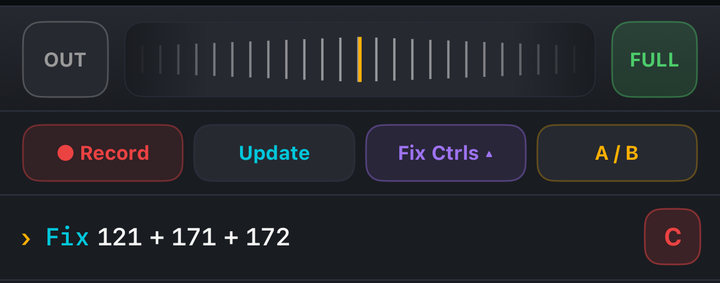

The bottom of the Fixtures screen: the level dock, the action row, then the command bar.

The level dock is the top strip: OUT, the jog wheel, and FULL.

  • Jog wheel. Drag the ribbed strip to change intensity. Every selected fixture moves by the same amount, and the wheel keeps spinning after you let go. Double-tap the left, center or right third for −1 stop, the center preset, or +1 stop.
  • OUT and FULL. Hold to flash. They respond the moment you touch them. To lock the value instead, keep holding and slide up the track toward the lock, then release. The track fades in as you press, so you can see where to slide. Slide back down before you let go to cancel.

On iPhone Duo the level dock moves into the strip under the clock. See iPhone Duo.

The action row is below it.

  • Record opens the record sheet, for a look, a group or the battery saver set. See Looks.
  • Update writes the current state back into the live look, a group or the battery saver set.
  • Fix Ctrls opens the per-parameter controls. See Fixture controls.
  • A/B. Hold to preview each fixture's saved B state. While holding, slide up to store the current state as the new B, or slide down to go back. B is saved with the location, so it survives a relaunch. A/B is a compare tool. It is not a look.

The command bar is the bottom strip. It shows the current selection and command. Tap it to open the keypad; the red C clears the line and the selection. The keypad and Fix Ctrls cannot be open at the same time. See Command line.

Fixture controls

Tap Fix Ctrls to show per-parameter controls. The controls are built from the first selected fixture's own profile, so you only ever see parameters that fixture actually has. The row along the bottom filters them by category: All · Int · Color · Beam · Ctrl, and Focus as well on a fixture that pans and tilts.

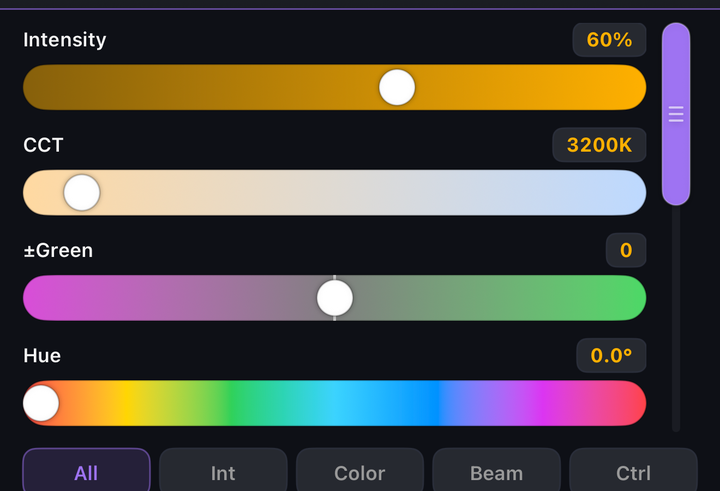

Four gradient sliders labeled Intensity 60 percent, CCT 3200K, plus-minus Green 0, and Hue 0.0 degrees, above a category row reading All, Int, Color, Beam, Ctrl.
Fixture controls for an Aputure STORM. Each track is the scale it sets, and each readout is in the parameter's own units.
  • Each parameter is a slider you drag. Tapping the track does nothing, so you cannot knock a light by accident. The gradient track is the scale, and values read out in real units: Kelvin, degrees, hertz, ±green.
  • Tap the value chip to type an exact value. Every keyboard in the app has a Done key that closes it. Double-tap the slider to return to the profile default.
  • An indexed channel, such as a gobo wheel, a color wheel or an effect selector, becomes a selector. Up to six options render as buttons. More than six render as a dropdown.
  • A strobe parameter gets Open and Strobe buttons.
Control commands are momentary Some fixtures put one-shot commands on a control channel: lamp reset, fan mode, dimming curve. Choosing one runs it. The control pulses red three times while it executes, then green twice when it is done, then resets. The fixture needs that hold time to register the command.

On iPhone Duo, unfolded, Fixture Controls opens beside your lights with a color pad and saved colors. See Color pad.

Pixels & cells

A multi-cell (pixel) fixture carries a violet C badge. Tap and hold the pill to open a cell drawer in the grid.

  • Up to 12 cells show as labeled cell pills. More than 12 show as a dense color and intensity matrix.
  • A cell behaves like a nested fixture. Selected cells drive the level dock, the jog wheel and the fixture controls. With no cells selected, a control on the pixel head moves every cell's dimmer proportionally.
  • To address cells from the keypad, use dotted addresses. See Cells and dotted addresses.

★Command line

A command has the form Object → Action → Target, then Enter. A number on its own is a fixture number. The parser ignores case and extra spaces.

How the keypad works

Tap the command bar to open the keypad. The command line has two halves, and they behave differently.

  • The selection changes as you type. Digits, +, − and Thru take effect immediately. They do not wait for Enter.
  • Enter runs the action. Only the part after the selection, the verb, is parsed on Enter. It runs against whatever is selected at that moment.

Because of that split, you can select by touch and act by keypad, or the reverse.

› Fix1Thru8AtFull
The command bar and keypad. Amber keys set levels, violet keys are functions, and the token echo uses the same colors as the rest of the app.

What each key does

KeyIn a selectionIn a verb
0–9Build a fixture number, and select it as you type.Build the value after At.
+Add the next fixtures to the selection.Make the level relative: At + 10.
−Remove the next fixtures from the selection.Make the level relative: At − 10.
ThruStart a range. 1 Thru 8 selects 1 to 8.not used
.Switch to a cell address. See below.Type a decimal in a fade time.
/not usedScale the current value: At /50 is half.
AtStart the verb.not used
Full / OutInsert At Full or At Out. You do not have to press At first.
HomeAfter Thru, end the range at the last patched fixture.Insert At Home. Press again to switch it to At Release.
TimeAdd a fade time. Time with no number uses the default from Settings ▸ Control.
Col Tmp / TintPoint the command at color temperature or ±green instead of intensity.
CopyArm a copy. Press again to switch it to Swap. Disabled unless exactly one fixture or one cell is selected.
⌫Delete one character from the last token, then rebuild.
ClearClear the line and the selection.
EnterRun the verb. The line stays on screen.

Enter keeps the line

After Enter, the command stays on screen. Press Enter again to run it again. For example At /200 doubles the level on each press. The next key that is not Enter starts a new command against the same selection.

The typed selection is kept across that run. If you typed Fix 121 Thru 172, the line still reads that way, and not the shorter list of fixtures that were actually patched in the range. A bare digit then starts a new selection, and +, − or Thru extend the one on screen.

Double-tap shortcuts

These run at once. Do not press Enter.

PressResult
At AtSet intensity to the preset percentage from Settings ▸ Control.
Full FullSet intensity to 100%.
Out OutSet intensity to 0%.
At + + / At − −Nudge intensity by the step from Settings ▸ Control.
Col Tmp At + +Nudge color temperature by the Kelvin step from Settings ▸ Control.

Words the parser accepts

KindWords
ObjectsFixture/Fix, Group/Grp, Look/Cue, Favorite/Fav, Effect/FX, Macro, Fader
SelectionThru, +, − or -
LevelsAt, Full/FL, Out, Home, Release/Rel
ParametersCol Temp / Color Temperature / CCT, Tint, Hue, Sat / Saturation
ActionsRecord/Rec, Update/Upd, Delete/Del, Recall, Copy (with From / To), Swap (with With), Time
Recognized but not yet wired The parser accepts Go, Select, Align, If, Freeze, Offset, On, Col Xfd, Next and Last. They parse without error and raise a message instead of running. The syntax will not change when they are wired up.

Levels

TypeResult
1Select fixture 1.
1 Thru 4 + 9 − 2Select 1 to 4, add 9, remove 2.
1 Thru HomeSelect fixture 1 and every fixture after it.
Group 2 + Fixture 5 At 75Select group 2 and fixture 5, then set intensity to 75%.
1 Thru 10 At /50Halve the current intensity.
1 At + 10Raise intensity by 10 percentage points.
601 At Full Time 3Fade to full over 3 seconds.
Fix 1 Col Temp At 5600Set color temperature to 5600 K. Parameters take real units, not a percentage.
1 Tint At 50Set ±green to +50% green.
1 Col Temp At −100Lower color temperature by 100 K.

Home and Release

At Home returns color, beam and position to the profile defaults. It does not change intensity. The level stays exactly where you set it.

At Release drops every manual edit on the selection back to the live look. A parameter the look records returns to its look value. A parameter the look does not record, a color tweak on an intensity-only look for example, returns to the profile default, so nothing is left behind. With no live look, Release does what Home does.

Both act on selected cells when cells are selected, and on whole fixtures otherwise.

Looks and groups

TypeResult
Look 3Recall look 3. A look number on its own means recall.
Record Look 6Record look 6. With no number, use the next free one.
UpdateUpdate the live look from the current state.
Update Look 2Update look 2 instead of the live one.
Recall From Look 4Pull look 4's values onto the current selection only.
Record Group 3Record the selection as group 3.
Delete Look 6 / Delete Group 3Delete that look or group.
DeleteWith a selection and no object, set those fixtures to 0.
What the keypad can type today The parser accepts every command on this page. The keypad does not yet have keys for the object words (Group, Look) or for Record, Update and Delete. A Shift layer is planned. Until it ships, use the on-screen controls for those: the group chips select groups, the Looks tab and the header transport recall looks, and Record and Update are buttons in the action row above the command bar. The syntax above is what the Shift layer will type, and it is what the playground runs.

Copy and Swap

Copy takes one source: one fixture, or one cell. Select it, then press Copy. The command bar reads Fix 1 Copy To.

  1. Choose targets. Tap fixtures or cells in the grid, where they outline green, or type their numbers, or do both.
  2. Use + for another target and Thru for a span.
  3. Press Time, then digits, to fade the copy in.
  4. Press Enter to run it.

Any other key cancels an armed copy.

Swap exchanges values instead of copying them. While a copy is armed the Copy key reads Swap. Tap it to switch. Swap takes exactly one target, so + and Thru do nothing, and tapping another fixture replaces the target instead of adding to it. The echo reads Fix 1 Swap With Fix 2.

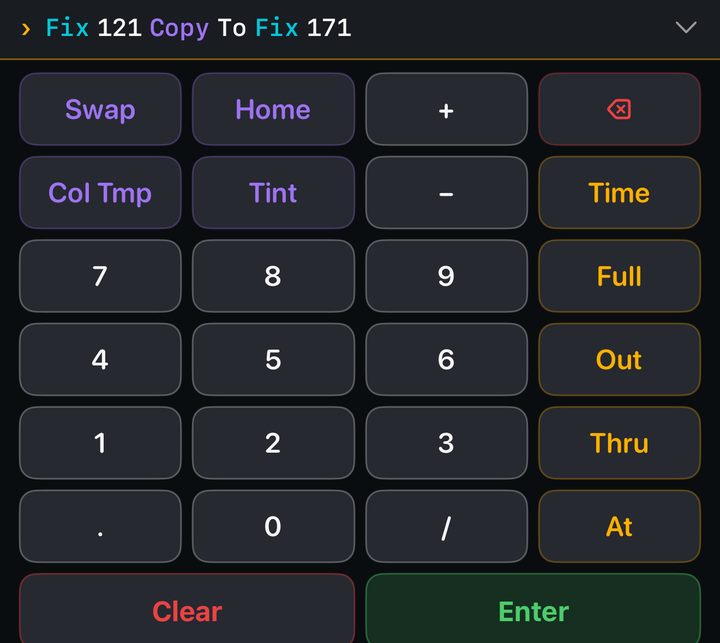

The command bar reads Fix 121 Copy To Fix 171. Below it the keypad, whose top-left key reads Swap instead of Copy.
A copy armed from fixture 121 onto 171. The top-left key now reads Swap. Tap it to exchange the two instead of copying.

Parameters are matched by name and type, so two different profiles still work together. Every combination works: fixture to fixture, cell to cell, cell to fixture, and fixture to cell. A single source cell is treated as the master, so its values fill every destination cell.

Cells and dotted addresses

A cell is addressed as <fixture>.<cell>.

TypeResult
1.1Cell 1 of fixture 1.
1.1 Thru .12Cells 1 to 12 of fixture 1.
1.1 + .3Cells 1 and 3 of fixture 1.
1.1 + 2.3Cell 1 of fixture 1, and cell 3 of fixture 2.
1..Every cell of fixture 1.
1.1 + 12Cell 1 of fixture 1, and all of fixture 12.
Every cell address needs its own dot The fixture number before the dot sets the context, and that context carries across + and Thru. But a number with no dot is always a whole fixture. Type 1.1 Thru .4 to select cells 1 to 4. 1.1 Thru 4 adds fixture 4 instead. This is what lets you mix cells and fixtures in one selection.

You can also select a cell range by touch: tap a cell, press Thru, then tap another cell in the same head.

Backspace

Backspace removes one character from the last token. Whole words such as Fixture, Group, Thru, Home, + and − are removed in one press. The app then rebuilds the whole selection from what is left on the line.

With nothing typed, backspace first adopts the current selection as the line. So deleting a selection you made by tapping works exactly like deleting one you typed.

Touch and typing stay in sync Tapping a fixture or a group chip clears the typed line. Group selections read back as Group 1 + Group 2, so the command bar always shows what is really selected.

Looks

A look stores fixture values and a fade time. The Looks tab is a grid of cards, tinted in each look's own color. A card shows the number and name, the fade time, and how many values it holds. The live look is marked ● LIVE.

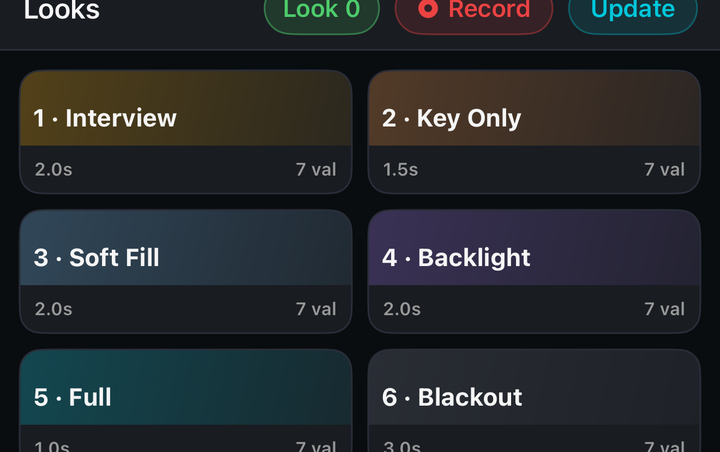

The Looks tab: Look 0, Record and Update buttons in the header, then six tinted look cards in two columns, each showing a name, a fade time and a value count.
Six looks. Record and Update sit in this header too, so you can program without going back to Fixtures.
  • Tap a card to recall it. It crossfades over its stored fade time.
  • Tap and hold a card for Edit, Clone and Delete. Edit changes the name, the color and the fade time. It does not re-record the values.
  • Transport. Red ◀ for the previous look, green ▶ for the next. It wraps around, and the same transport is in the Fixtures header.
  • Look 0 in the header releases the live look and returns every light to its own defaults.
  • Recording a look makes it the live look. Pills then switch from manual (amber) to tracking (white, or red where you have edited over it).

Record sheet: Look, Group or Battery, number, name, color, fade time (looks only), and a "Selection only" toggle. The default name follows the number as you change it, until you type a name of your own. Update sheet: Looks, Groups or Battery, with an "Apply to" picker for the look or group. It has no fade field, so updating values cannot change the fade time by accident.

On iPhone Duo, unfolded, the Looks tab adds a look editor beside the cards, and Edit opens beside the console instead of covering it. See Look editor.

Planned An expanded timing view: separate fade-up and fade-down, delay, per-category timing for Focus, Color and Beam, and a link that auto-follows the next look.

Groups

A group is a reusable selection. To make one, select the fixtures and choose Record → Group, or type Record Group n. A group has a number, a name and a color, and it appears as a chip on the Fixtures screen.

Several groups can be on at once, and the selection is their union. To delete a group, tap and hold its chip, or type Delete Group n.

Battery saver

Battery saver turns your battery-powered lights off between takes, then brings them back exactly as they were.

  1. Select the battery-powered fixtures.
  2. Choose Record ▸ Battery. This replaces the saved set with the selection. To add or remove fixtures later, use Update ▸ Battery.
  3. Open the Master panel under M and turn on Battery saver. It turns orange and shows how many fixtures are in the set.
The Master panel open under the M button: the word Master over 100 percent, a tall amber fader, a power button for Blackout, and a battery button reading 0.
The Master panel: master fader, Blackout, and Battery saver with no set saved yet.

While it is on, the saved fixtures put out no light, the same way blackout holds them at zero. You can still program them: their levels, looks and colors change underneath. Turn battery saver off and each light returns to its current programmed values. Looks record the programmed values, never the zero. The set and the on/off state are saved with the location.

Patching

The Patch tab lists every fixture in the location. A row shows the number (amber), a bar in the label color, then the label, the manufacturer and model, and the mode with its channel count. The universe / address is on the right, in cyan. A row with a conflicting address is tinted red.

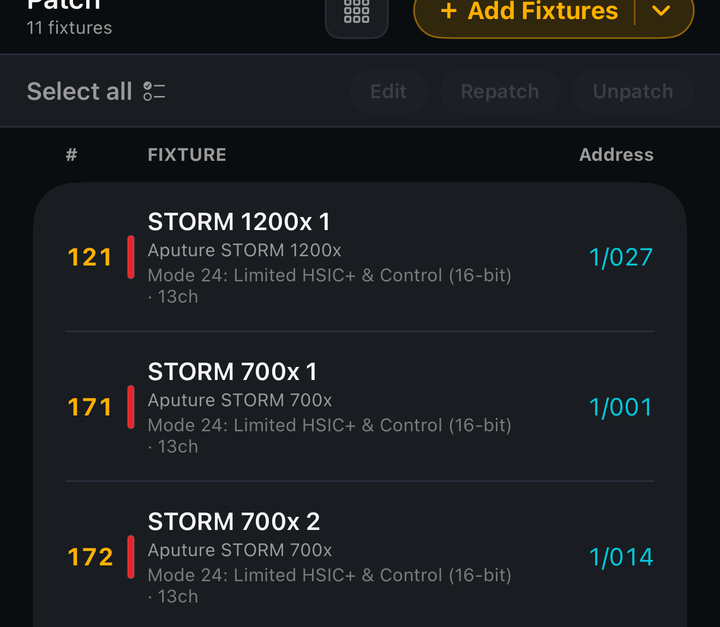

The Patch tab: a header reading Patch, 11 fixtures, an Add Fixtures button, a Select all row with Edit, Repatch and Unpatch, then fixture rows showing number, name, manufacturer, mode and address.
The patch list. The Edit · Repatch · Unpatch buttons stay grayed out until you select rows.

Adding fixtures

  • + Add Fixtures opens one page in three sections: Brand → Fixture → Profile. It has a search field and a filter: sort by mode or channel count, and narrow to pixels, features or favorites. Star a profile to pin it to the top.
  • Choosing a profile opens the config step: a label and a swatch, then steppers for Amount · Fixture Number · Universe · Address · Gap. The next free address is filled in for you.

Editing

  • Tap rows to select them. The edit bar is always visible. Edit changes the label and color. Repatch renumbers and re-addresses the selection in sequence. Unpatch removes it. Swipe a row to delete one fixture.
  • Overwriting. Patching over an existing fixture number, or over overlapping channels, replaces what is there. You get an inline "⚠ Will overwrite…" warning and a confirmation before anything is replaced.

Importing a patch

Pocket Console reads a patch exported as CSV from Blackout Lighting Console. Choose Import Patch, pick the file, and review the matches before they are applied. Rows the app cannot match to a profile are listed so you can fix them by hand.

Profiles and GDTF Pocket Console ships a hand-authored profile library covering Aputure, amaran, Astera, Nanlux, Nanlite, ARRI, Godox/KNOWLED, Creamsource, LiteGear, Litepanels, Kino Flo, Intellytech, Aladdin, Fiilex, DMG Lumière, Quasar Science, Kelvin, Prolycht, VELVET, Rotolight, GVM, Neewer and Digital Sputnik. Every mode is transcribed from the manufacturer's own DMX chart. Profiles are data, not code, so new and corrected profiles arrive without an app update: Settings ▸ Fixture Library ▸ Sync Profile Library. GDTF import is planned.

Output & settings

The Settings tab controls how DMX leaves the phone.

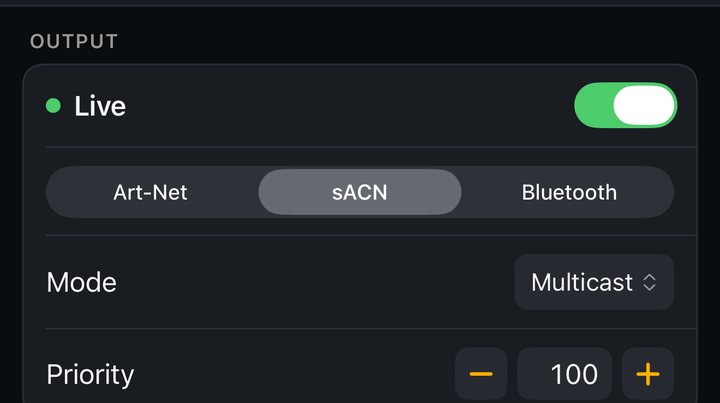

The Output section of Settings: a green Live toggle, a segmented control with Art-Net, sACN and Bluetooth (sACN selected), a Mode row set to Multicast, and a Priority stepper set to 100.
The Output section. The toggle reads Live when output is running, and Locked without a subscription.
  • The toggle at the top of Output is the master on/off. Below it you choose one active protocol: Art-Net, sACN or Bluetooth. Only one runs at a time.
  • Mode sets how that protocol addresses the network: multicast or unicast for sACN; broadcast, directed broadcast or unicast for Art-Net. A unicast mode adds a field for the node address. For Art-Net, Universe numbering matches nodes that call their first universe 0 instead of 1.
  • Priority (sACN) sets this source's priority, so Pocket Console can win a universe another console is also driving.
  • Universe routing maps each of your universes to an output universe. The engine streams every routed universe at approximately 40 frames per second.
  • Plan shows your subscription and holds Restore Purchases.
  • Control sets the five values the keypad and jog wheel use: wheel center double-tap, At · At level, At ++ / −− step, Col Tmp ++ / −− step, and default fade time.
  • CCT Slider sets the white points that color temperature sliders stick to as you drag past them (3200 K and 5600 K by default). Add as many as you like, or none.
  • Appearance sets the selection highlight color (white by default) and the default swatch color.
  • Fixture Library syncs new and corrected profiles. When a synced profile differs from one in your patch, it offers to update those fixtures.
  • Support has the Discord link, Report a Bug and Request a Fixture or Profile. About has the version and Replay Tutorial.
There is no network-interface picker, on purpose A lighting network has no internet, so iOS moves its default route to cellular and your DMX leaves by the cell radio while Wi-Fi still shows as connected. Pocket Console pins its socket to the Wi-Fi interface instead of following the route table, and re-checks every second, so it survives a Wi-Fi drop, a rejoin or a DHCP renewal without your help. Just join the lighting network.

Bluetooth (CRMX)

Choosing Bluetooth streams to LumenRadio TimoTwo devices: CRMX transmitters, or fixtures with the module built in. Tap Choose device… and pick one. To add more, tap Add device…. Each device has its own status, a Universe stepper, Connect / Disconnect, and Forget. A new device takes the first patched universe that no other device carries. A TimoTwo you paired in version 1.0 carries over. Two limits apply:

  • One universe per device. Each TimoTwo carries one universe. Two devices can carry the same one.
  • Changes only. Bluetooth cannot carry a 40 fps full-universe refresh. After the first full frame, only changed channels are sent. Levels hold exactly where you left them. Turning Output off sends one all-zeros frame, so the lights actually go out.
Network defaults sACN sends multicast and Art-Net sends broadcast. Unicast is selectable for either if your network needs it. 16-bit parameters are sent as coarse and fine channel pairs automatically.

iPhone Duo

On iPhone Duo, Pocket Console uses the strip beside the screen when folded, and the second half of the screen when unfolded.

The strip under the clock

Folded or unfolded, FULL, OUT and a vertical level wheel sit in the strip under the clock, in place of the level dock.

  • Drag the wheel up to raise intensity and down to lower it. Double-tap its top or bottom for +1 or −1 stop.
  • Hold FULL or OUT to flash. Keep holding and swipe left to lock.
  • The command line, the action row, the Looks ◀ ▶ bar and the tab bar stop where the strip starts. They stay put while the keypad is open.
  • Record and Update open over the console, and stay open when you fold or unfold. Patch's Edit, Repatch and Channels sheets do the same.
Pocket Console on the folded iPhone Duo: the fixture grid, action row and command line on the left, and a strip on the right with the clock, the Wi-Fi ring, FULL, OUT and a vertical level wheel.
Folded: FULL, OUT and the level wheel in the strip.

Unfolded

The console stays on the right, the same size as folded. The left pane shows a companion for the tab you are on:

TabLeft pane
FixturesFixture Controls, with a color pad. The Looks button in the action row swaps it for your looks; Fix Ctrls swaps it back.
LooksThe look editor.
PatchAdd to Patch: the fixture library, Patch Dimmer and Import CSV.
SettingsA list of the sections, each with a one-line summary. Tap one to jump to it.

Fixture Controls shows how many lights you have selected. The command line on the right spells out their numbers.

The unfolded iPhone Duo: Fixture Controls on the left with the color wheel, saved colors and the Intensity, CCT, Green and Hue sliders, and the console on the right.
Unfolded, Fixtures tab: Fixture Controls beside the grid.

Color pad

The color pad sits above the sliders when a selected light can mix color. Switch it between Wheel and xy.

  • Wheel. Hue goes around the wheel, starting with red at 3 o'clock. Saturation increases from white in the middle to full at the edge.
  • xy. The CIE 1931 diagram across the pane. Full shows the whole diagram. Whites zooms in on the black-body line, about 2000 K to 10,000 K. A live readout shows x, y, Kelvin and ±green. Drag close to the black-body line and the point snaps onto it. Lights in an XY mode open on xy.
  • One pick drives a mixed selection. Hue and saturation lights, RGB and RGBW lights, and xy lights each get their own values for the same color. Lights that only have color temperature are skipped.
  • Lights whose color mode has its own color temperature, such as Aputure HSIC+, fade toward that Kelvin as you desaturate, not toward 6500 K. Pick a white on xy and their CCT slider moves there too.

Saved colors sit next to the pad. Tap + to keep the current color, tap a swatch to use it, and tap and hold a swatch to replace or delete it. Saved colors are shared across every project.

Look editor

The look editor shows one look as a table: a row for each light and a column for each attribute (INT, CCT, ±GRN, HUE, SAT and so on). A pixel light opens to a row for each cell. — means the look does not store that value. A blank means the light has no such parameter.

  • Tap a cell to edit it with a slider and − / + buttons, or to remove it from the look. Tap an empty cell to add it.
  • Tap a column header to move every light in that column together. − / + keep their differences; the slider sets them all to one value.
  • ⏱ sets the look's fade time.
  • Changes show in cyan until you tap Save or Discard. They survive folding and switching tabs.

The editor shows the live look. Turn on Edit Looks to open any look: tapping a card then opens it instead of firing it. Look 0 cannot be edited.

The look editor on the unfolded iPhone Duo: look 3, Soft Fill, as a table of lights and attributes with one edited value, Discard and Save, beside the look cards.
Editing 3 · Soft Fill with one unsaved change. The live look keeps playing.
Editing never surprises the output Saving a look that is not live changes nothing on the lights. Saving the live look sends only the values you changed, with no fade. While changes are pending, the cards and ◀ ▶ on the Looks tab wait for Save or Discard. The header transport, the command line and Update still work.

Patch

The left pane holds the fixture library, Patch Dimmer and Import CSV. While you set up a fixture, the universe map on the right shows where the new lights will land as dashed cyan blocks, so the Visual Patch button is not needed. Library sync sits in the Add to Patch header. A half-filled setup carries across a fold: fold, and Add Fixtures or Patch Dimmer opens at the step you left.

Patch on the unfolded iPhone Duo: Add to Patch on the left with Library, Patch Dimmer and Import CSV and a searchable list of brands, and the patch list on the right.
Unfolded, Patch tab: the fixture library beside your patch.
Want to try the keypad? Open the playground →
Still stuck, or after a fixture that isn't in the app? Ask on Discord →
